Wedge Gate Valve

API600 gate valves usually adopt a wedge-type gate, or a solid or flexible wedge-type gate structure. The gate should be completely withdrawn from the valve seat hole when in the open position, except the parallel double-disc gate.

 API 600 OS&Y Gate Valve,

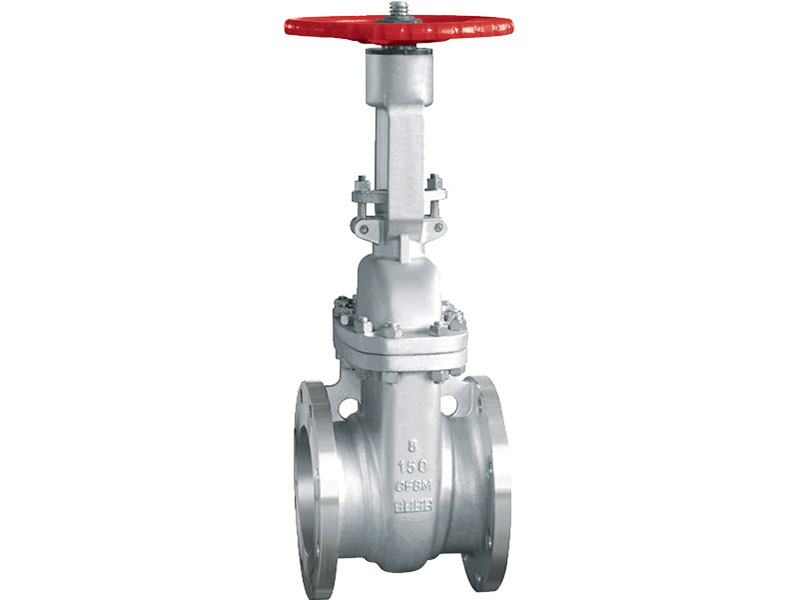

API 600 Wedge Gate Valve, OS&Y

SIZE RANGE AND PRESSURE CLASS

Size from 2” to 40” (DN50-DN1000)

Pressure from 150LBS to 1500LBS (PN16-PN240)

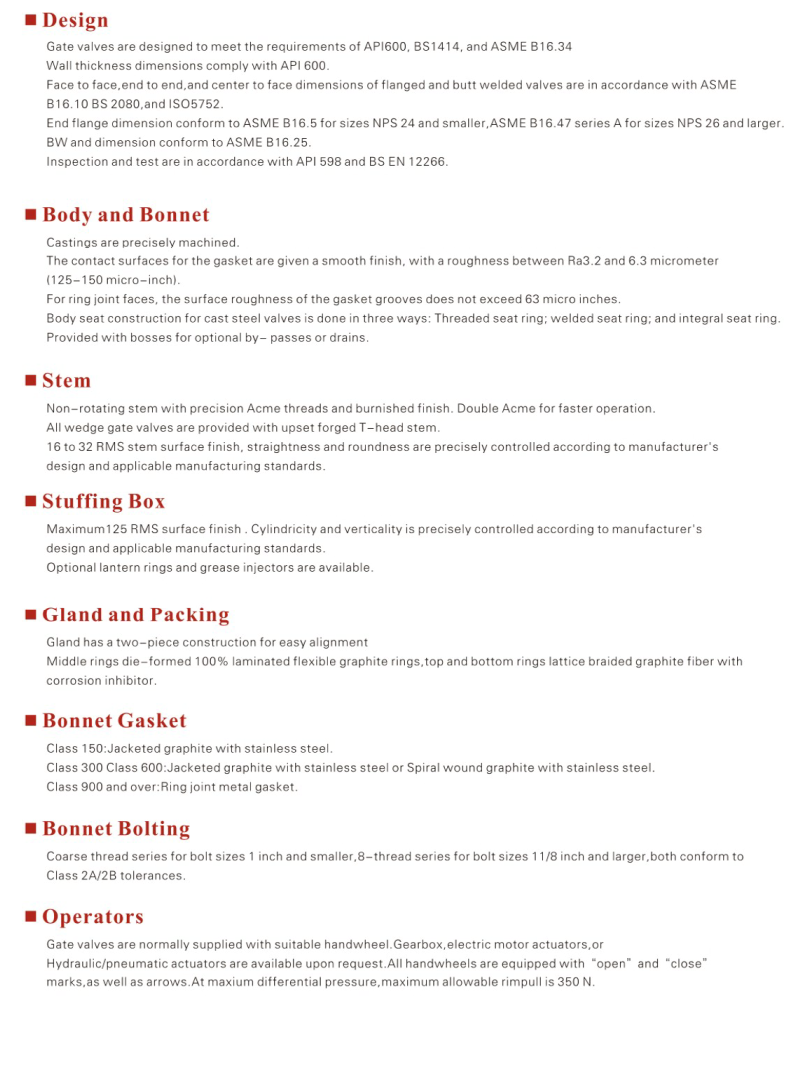

DESIGN STANDARDS

Design / Manufacture as per the standards API 600

Face to Face Length (Dimension) as per the standards ASME B16.10

Flanged Dimension according to the standards ASME B16.5

Flanged to ASME B16.5 (2” ~ 24”) and ASME B16.47 Series A / B (26” and above) Clamp / Hub ends on request.

Testing according to the standards API 598

TECHNICAL FEATURES

Wedge gate, os&y design

Designed and manufactured in accordance with api standards

Stellite cobalt-based hard alloy surface for high pressure valves

Sealing face wear-resistant, corrosion resistant, good scratch resistance

Long service life

The valve stem has good corrosion resistance and scratch resistance.

Wedge-type elastic gate structure

Rolling bearings make opening and closing easy.

Suitable for various pressure, temperature and medium working conditions.

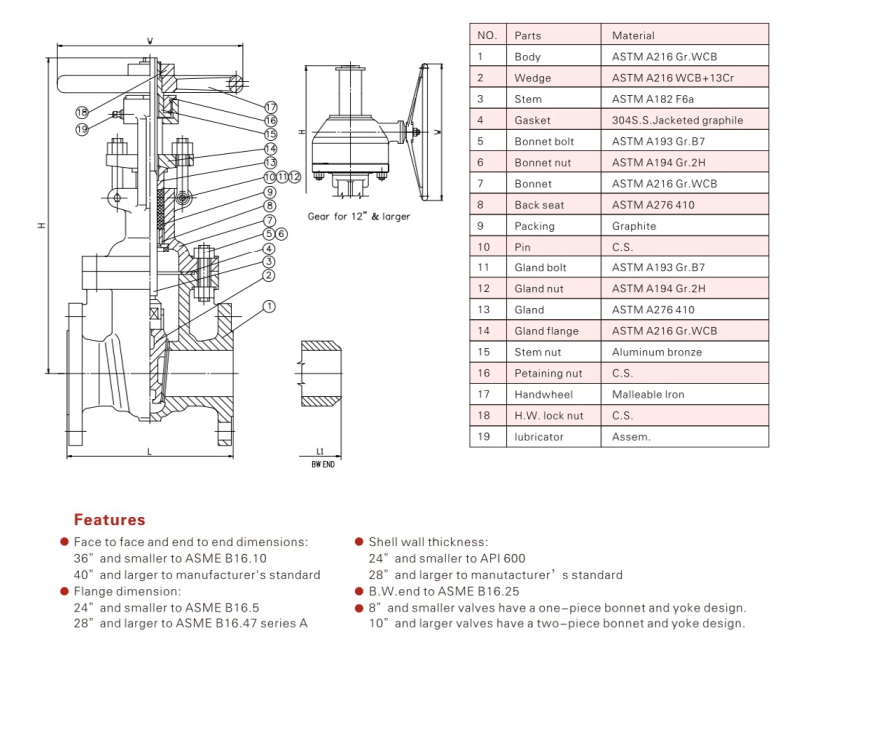

CONSTRUCTION MATERIALS

General Cast Carbon Steel

A216 WCB (WCC, WCA), GP240GH (1.0619/GS-C25)

Low Temperature Carbon Steel (LTCS), LCB (LCC, LCA), GS-CK25

Alloy Steel:

A352 LC1/LC2/LC2-1/LC3/LC4/LC9/, A743 CA6NM

GS-CK16 GS-CK24 GS-10Ni6 GS-10ni14

High Temperature Steel (Chrome Moly)/Alloy Steel:

A217 WC1/ WC6/ WC9/C5/C12/C12A

GS-22Mo4/ G20Mo5 (1.5419); GS-17CrMo55/ G17CrMo5-5 (1.7357)

Austenitic Stainless Steel/Alloy Steel:

UNS S30400 (S30403) (S30409), A351 CF8/CF3/CF10

G-X6CrNi189/ GX5CrNi19-10(1.4308)

UNS S31600 (S31603) (S31609), A351 CF8M/CF3M/CF10M

GX5CrNiMo19-11-2/G-X6CrNiMo18.10 (1.4408)

UNS S34700 (S34709), A351 CF8C

G-X5CrNiNb189/GX5CrNiNb19-11(1.4552）

AISI316Ti; X6CrNiNo17122/ X6CrNiMoTi17-12-2(1.4571)

ALLOY 20# / UNS N08020, A351 CN7M

Ferritic-Austenitic / Duplex / Super Duplex Stainless Steel:

UNS S31803 /S32205 (Duplex2205), A890/A995 GR.4A (J92205) /A351 CD3MN

UNS S32750 (Super Duplex2507), A890/A995 GR.5A / A351 CE8MN (CD4MCu)

UNS S32760, A890/A995 GR.6A (CD3MWCuN)

Other materials

Alloy 20 ASTM B462 / UNS N08020

Monel 400 / UNS N04400 ASTM B564-N04400 / A494 M35-1 NiCu30Fe (2.4360)

Nickel Alloy 904L / UNS N08904 X1NiCrMoCu25.20.5 (1.4539)

Inconel 625 /UNS N06625 /ASTM B564-N06625 /ASTM A494-CW6MC

NiCr22Mo9Nb (2.4856)

Inconel 825 /UNS N08825 /ASTM B564-N08825 /A494 CU5MCuC (2.4858)

NiCr21Mo (2.4858)
