l  BS1868 swing check valve prevents potentially damaging backflows to protect equipment like as pumps and compressors.

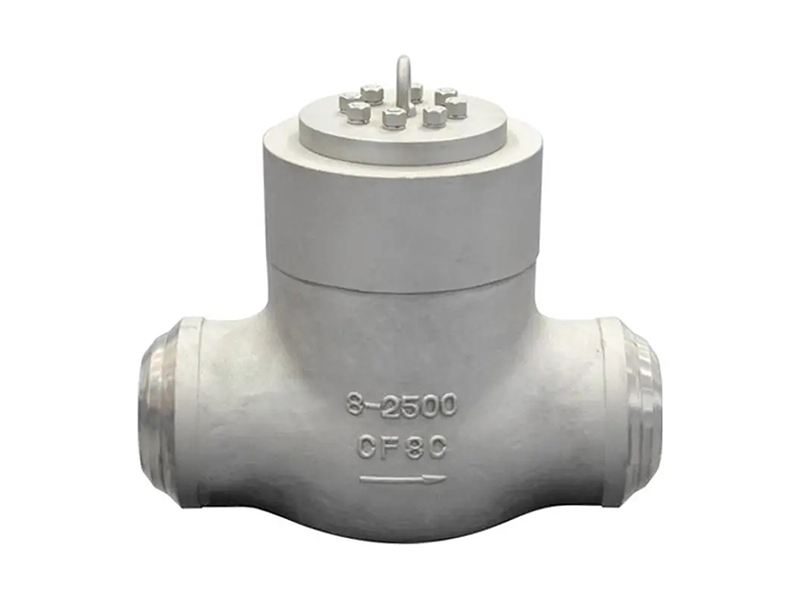

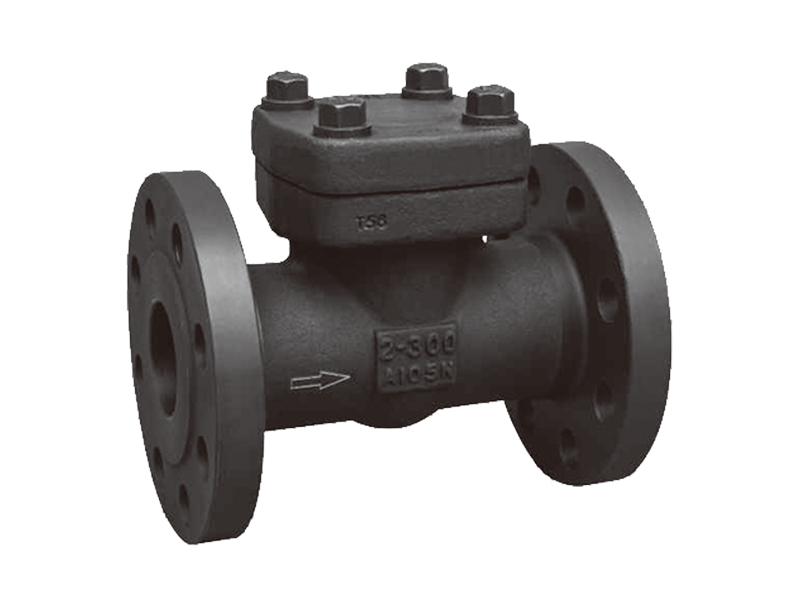

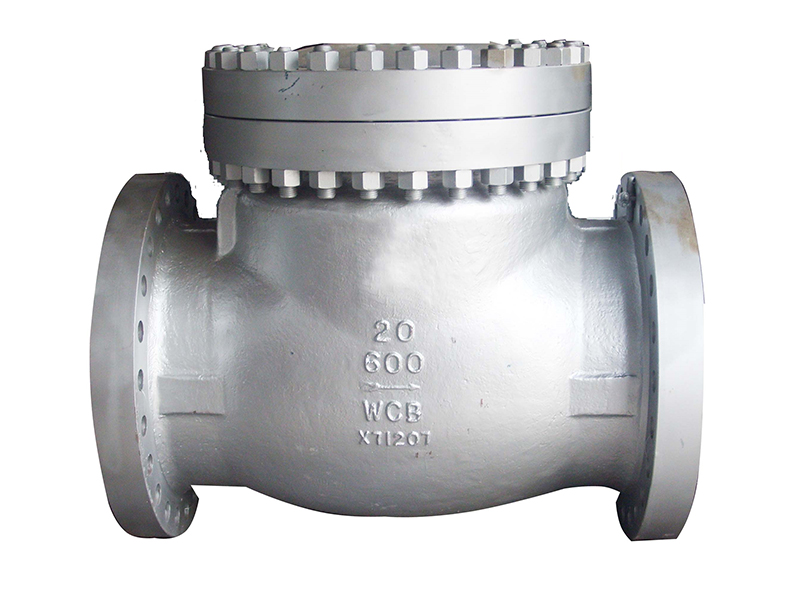

l  GW BS1868 Swing Check Valve

l  BS1868 swing check valve prevents potentially damaging backflows to protect equipment like as pumps and compressors. The Non-return valves allow the flow of the fluid in one direction only and block reverse flows. It has the simplest design and operates via a metallic disc attached to a hinge at the top. when the fluid passes through a the swing check valve, then the valve is open. When a reverse flow occurs, the changes in motion as well as gravity help to close the disc, closing the valve and preventing backflows.

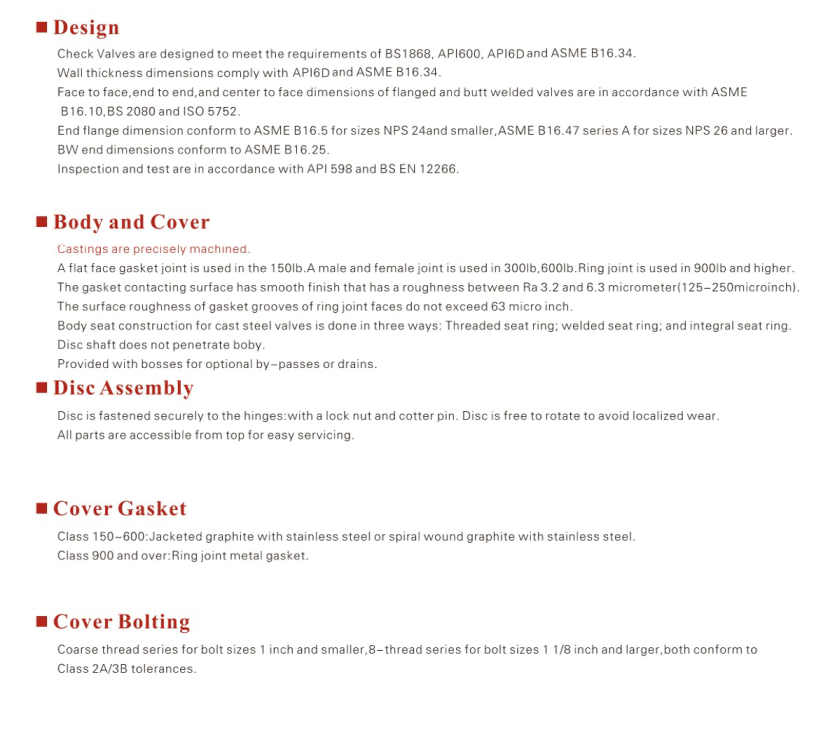

l  GW BS1868 Swing Check Valve Standard
Welding seat rings or Renewable seat rings

l  Design and Manufacture: BS1868 or ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5, ASME B16.47(API 605 ,MSS SP44)
BW end dimension: ASME B16.25
Face to face,end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34
NACE: NACE 0175
Size Range: 2” – 36”
Pressure Range: ASME Class 150- 2500LB
materials:ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8,A351 CF8M,A351 CF3,A351 CF3M,A351 CN7M;.ASTM A352 LC1 LCB LCC LC3 Hastelloy C276,Monel,Titanium and Alloy 20(Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
